<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: NetApp NIC v2 Sensor

The NetApp NIC v2 sensor monitors a network interface card (NIC) of a NetApp storage system via the Representational State Transfer (REST) application programming interface (API) using ONTAP as of version 9.10.

i_round_redThis sensor was converted to a new framework so that it will continue to function after the changes of the ONTAP REST API. This sensor now requires permissions for the ONTAP REST API and credentials for NetApp in settings that are higher in the object hierarchy, for example, in the settings of the parent device.

NetApp NIC v2 Sensor

NetApp NIC v2 Sensor

i_square_cyanFor a detailed list and descriptions of the channels that this sensor can show, see section Channel List.

Sensor in Other Languages

  • Dutch: NetApp NIC v2
  • French: NetApp NIC v2
  • German: NetApp NIC v2
  • Japanese: NetApp NIC v2
  • Portuguese: NIC NetApp v2
  • Russian: NIC NetApp v2
  • Simplified Chinese: NetApp NIC v2
  • Spanish: NIC NetApp v2

Remarks

  • This sensor requires an ONTAP System Manager user account with specific access rights.
  • This sensor requires permissions for the ONTAP REST API.
  • This sensor supports ONTAP as of version 9.10. If you want to use NetApp cDOT as of version 8.3 or ONTAP from version 9.0 to version 9.9, use the NetApp NIC sensor.
  • This sensor supports IPv6.
  • This sensor has a very low performance impact.
  • This sensor uses lookups to determine the status values of one or more channels.

Detailed Requirements

Requirement

Description

Credentials for NetApp

This sensor requires an ONTAP System Manager user account with the role readonly and with access to the HTTP application with Password authentication.

Permissions for the ONTAP REST API

This sensor requires the role readonly with the following permissions for the ONTAP REST API:

Access level Read-Only:

  • /api
  • /api/security/audit/destinations

Access level Read/Write:

  • /api/security/authentication/password

Access level None:

  • /api/security

Basic Sensor Settings

Basic Sensor Settings

Basic Sensor Settings

Setting

Description

Sensor Name

Enter a name to identify the sensor. By default, PRTG shows this name in the device tree, as well as in alarms, logs, notifications, reports, maps, libraries, and tickets.

i_round_blueIf the name contains angle brackets (<>), PRTG replaces them with braces ({}) for security reasons. For more information, see the Knowledge Base: What security features does PRTG include?

Parent Tags

The tags that the sensor inherits from its parent device, parent group, and parent probe.

i_round_blueThis setting is for your information only. You cannot change it.

Tags

Enter one or more tags. Confirm each tag with the Spacebar key, a comma, or the Enter key. You can use tags to group objects and use tag-filtered views later on. Tags are not case-sensitive. Tags are automatically inherited.

i_round_blueIt is not possible to enter tags with a leading plus (+) or minus (-) sign, nor tags with parentheses (()) or angle brackets (<>).

i_round_blueFor performance reasons, it can take some minutes until you can filter for new tags that you added.

The sensor has the following default tags that are automatically predefined in the sensor's settings when you add the sensor:

  • netapp
  • nic
  • ontap
  • rest

Priority

Select a priority for the sensor. This setting determines the position of the sensor in lists. The highest priority is at the top of a list. Choose from the lowest priority (i_priority_1) to the highest priority (i_priority_5).

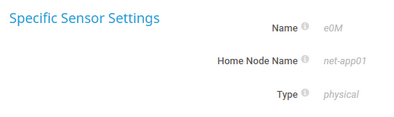

NetApp Specific

NetApp Specific

NetApp Specific

Setting

Description

Name

The name of the NIC that this sensor monitors.

Home Node Name

The home node name of the NIC that this sensor monitors.

Type

The type of the NIC that this sensor monitors.

Sensor Display

Sensor Display

Sensor Display

Setting

Description

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel is always displayed below the sensor's name. The available options depend on what channels are available for this sensor.

i_round_blueYou can set a different primary channel later by clicking b_channel_primary below a channel gauge on the sensor's Overview tab.

Graph Type

Define how different channels are shown for this sensor:

  • Show channels independently (default): Show a graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic.
    i_round_redYou cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).

Stack Unit

This setting is only visible if you select Stack channels on top of each other above.

Select a unit from the list. All channels with this unit are stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Debug Options

Debug Options

Debug Options

Setting

Description

Result Handling

Define what PRTG does with the sensor result:

  • Discard result (default): Do not store the sensor result.
  • Store result: Store the last sensor result in the \Logs\sensors subfolder of the PRTG data directory on the probe system. The file name is Result of Sensor [ID].log. This setting is for debugging purposes. PRTG overwrites this file with each scanning interval.

i_podThis option is not available when the sensor runs on the hosted probe of a PRTG Hosted Monitor instance.

i_round_blueIn a cluster, PRTG stores the result in the PRTG data directory of the master node.

Inherited Settings

By default, all of these settings are inherited from objects that are higher in the hierarchy. We recommend that you change them centrally in the root group settings if necessary. To change a setting for this object only, click b_inherited_enabled under the corresponding setting name to disable the inheritance and to display its options.

i_square_cyanFor more information, see section Inheritance of Settings.

Scanning Interval

i_round_blueThe minimum scanning interval of this sensor is 1 minute.

i_round_blueThe recommended scanning interval of this sensor is 1 minute.

Scanning Interval

Scanning Interval

i_square_cyanFor more information, see section Root Group Settings, section Scanning Interval.

Schedules, Dependencies, and Maintenance Window

i_round_blueYou cannot interrupt the inheritance for schedules, dependencies, and maintenance windows. The corresponding settings from the parent objects are always active. However, you can define additional schedules, dependencies, and maintenance windows. They are active at the same time as the parent objects' settings.

Schedules, Dependencies, and Maintenance Window

Schedules, Dependencies, and Maintenance Window

i_square_cyanFor more information, see section Root Group Settings, section Schedules, Dependencies, and Maintenance Window (default).

Access Rights

Access Rights

Access Rights

i_square_cyanFor more information, see section Root Group Settings, section Access Rights.

Channel Unit Configuration

i_round_blueWhich channel units are available depends on the sensor type and the available parameters. If no configurable channels are available, this field shows No configurable channels.

Channel Unit Configuration

Channel Unit Configuration

i_square_cyanFor more information, see section Root Group Settings, section Channel Unit Configuration.

Channel List

i_round_blueWhich channels the sensor actually shows might depend on the target device, the available components, and the sensor setup.

Channel

Description

Downtime

In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down state

Link Down Count

The number of link status changes from up to down

i_round_blueThis channel has a default limit

  • Upper error limit: 0

Receive Errors

The number of errors received

i_round_blueThis channel has a default limit

  • Upper error limit: 0

State

The NIC status

  • Up status: Up
  • Down status: Down
  • Unknown status: Channel Value not Set

i_round_blueThis channel is the primary channel by default.

Throughput Read

The number of bytes read

Throughput Total

The total number of bytes read and written

Throughput Write

The number of bytes written

Transmit Errors

The number of errors sent

i_round_blueThis channel has a default limit

  • Upper error limit: 0

More

i_square_blueKNOWLEDGE BASE

What security features does PRTG include?
